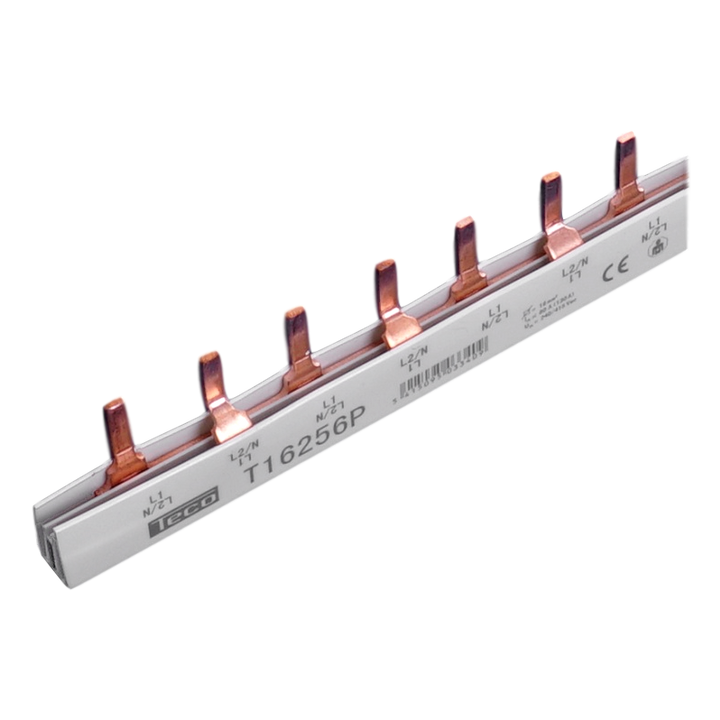

Section rails pin Teco 16mm² 56mod 2p
Internal Reference: T16256P
Grey.
I(m) = I(max) supplied to the middle of the comb.
I(e) = I(max) supplied at the end of the comb (beginning or end).
Maximum short-circuit current: 26kA.
Phase and neutral marked on both sides.
I(m) = I(max) supplied to the middle of the comb.
I(e) = I(max) supplied at the end of the comb (beginning or end).
Maximum short-circuit current: 26kA.
Phase and neutral marked on both sides.
| Poles: 2 |
| Type: Pointe |
| I(m): 130 A |
| Section: 16 mm² |
| I(e): 80 A |
| Scheme: L-N |
| No. of modules: 56 |
