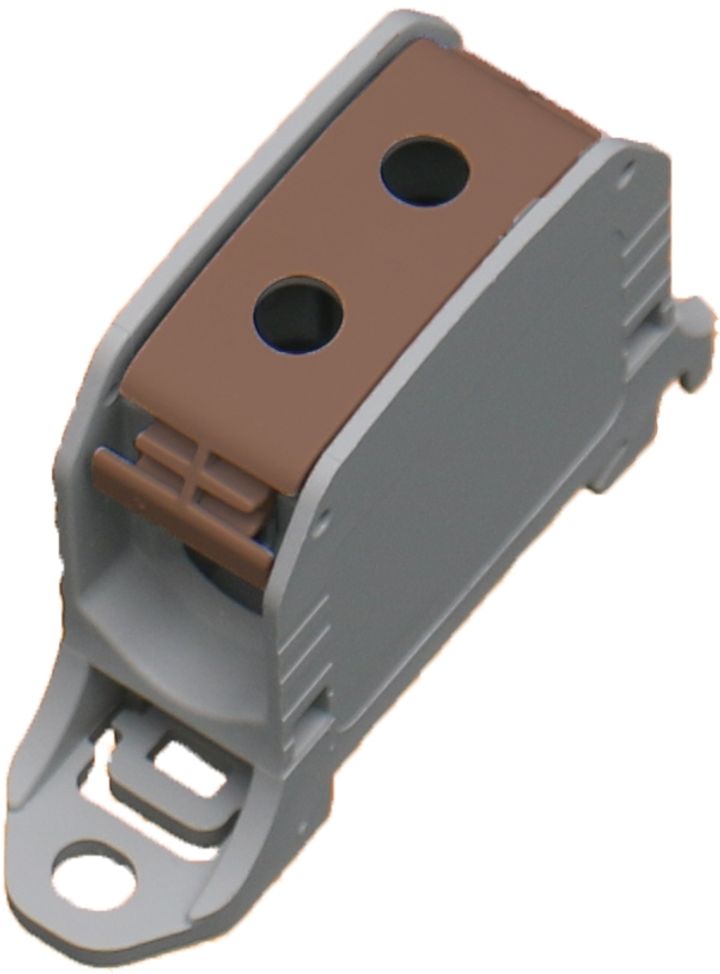

Borne de racc. RKA 1p 50mm² Cu+Al brune

Internal Reference: 087310-3-3

I(max):
1000Vac/dc 160A Cu
600V 150A Cu/120A Al

additional measurement terminal integrated by default

IP20

halogen-free, self-extinguishing

captive screws with constant tightening torque

can be coupled with RKA 50mm² terminals

mounting on DIN rail or by screws

earth terminal color according to standard IEC60947-7-1

with profile for marking

for Cu and Al conductors
