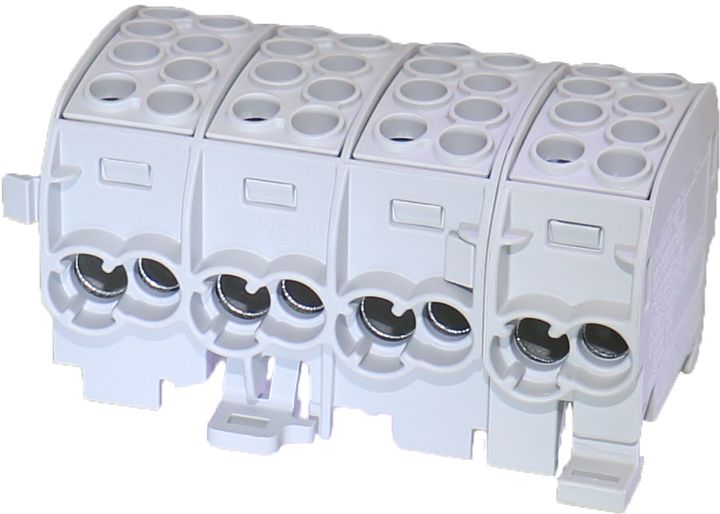

Bornier de dériv. HLAK35 C 4p 2x35, 2x25mm² Cu 4L
Internal Reference: 080240-0-4
I(max): 1000Vac/dc 202A Cu / 125A Al
IP20
halogen-free, self-extinguishing
earth terminal color according to standard IEC60947-7-1
captive screws with constant tightening torque
can be coupled with HLAK25 and HLAK35 terminals
DIN rail mounting
IP20
halogen-free, self-extinguishing
earth terminal color according to standard IEC60947-7-1
captive screws with constant tightening torque
can be coupled with HLAK25 and HLAK35 terminals
DIN rail mounting
| I(n): 202 A |
| Color: gris-gris-gris-gris |
| For drivers: Cu |
| Number of connections 25 mm²: 2 (4x) |
| Number of connections 35 mm²: 2 (4x) |
