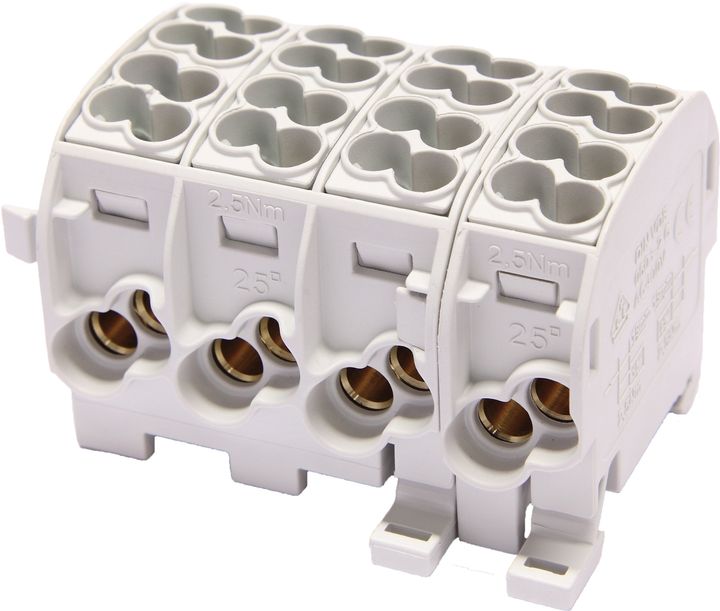

Branching terminal block HLAK25 C 4p 2x25, 2x16mm² Cu+Al 4L
Internal Reference: 080140-0-3
I(max) : 1000Vac/dc 152A Cu / 100A Al
IP20
halogen-free, self-extinguishing
color of ground terminal according to IEC60947-7-1 standard
captive screws with constant tightening torque
can be coupled with HLAK25 and HLAK35 terminals
DIN rail mounting
IP20
halogen-free, self-extinguishing
color of ground terminal according to IEC60947-7-1 standard
captive screws with constant tightening torque
can be coupled with HLAK25 and HLAK35 terminals
DIN rail mounting
This product has no valid combination.
| I(n): 152 A |
| Color: gris-gris-gris-gris |
| For drivers: Cu + Al |
| Number of connections 16 mm²: 2 (4x) |
| Number of connections 25 mm²: 2 (4x) |
